All-in-One Processors
The Pezzolato all-in-one firewood processors are fully integrated industrial machines that combine cutting, splitting, and conveying into a single automated production line. Built for efficiency and minimal handling, they deliver consistent sizing, fast cycle times, and reliable single-operator performance in demanding commercial environments.
TL600 MOBILE
TL600 MOBILE is a moveable firewood processor mounted on a tandem trolley for flexibility, efficiency and ease of use. This mobile system allows a single operator to load logs, cut and split logs producing high quality firewood quickly, with minimal waste. A system capable of carrying out the cutting and splitting cycle in a totally automatic manner, conceived and designed to break down the limitations of traditional stationary systems, making it possible to operate in different work sites or in companies even far apart.
KEY Specifications
-
Electric engine power: 100.58 Hp
-
Diesel engine power: JOHN DEERE 4045C 173/129
-
Cutting disc diameter: 59.1 in
-
Max log diameter: 23.6 in
-
Min log diameter: 11.8 in
-
Log length: 1.97-19.7 in
-
Kindling minimum size: 40x40 cm
Industrial Schematic & Drawing
TL600 Stationary
The TL600 stationary firewood processor from Pezzolato is designed for high-volume operations that require consistent, efficient, and fully integrated firewood production. Built for permanent installations, the stationary TL600 is ideal for producers looking to pair the processor with infeed decks, outfeed conveyors, and downstream equipment to create a streamlined, automated processing line.
KEY Specifications
-
Electric engine power: 100.58 Hp
-
Diesel engine power: JOHN DEERE 4045C 173/129
-
Cutting disc diameter: 59.1 in
-
Max log diameter: 23.6 in
-
Min log diameter: 11.8 in
-
Log length: 1.97-19.7 in
-
Kindling minimum size: 40x40 cm

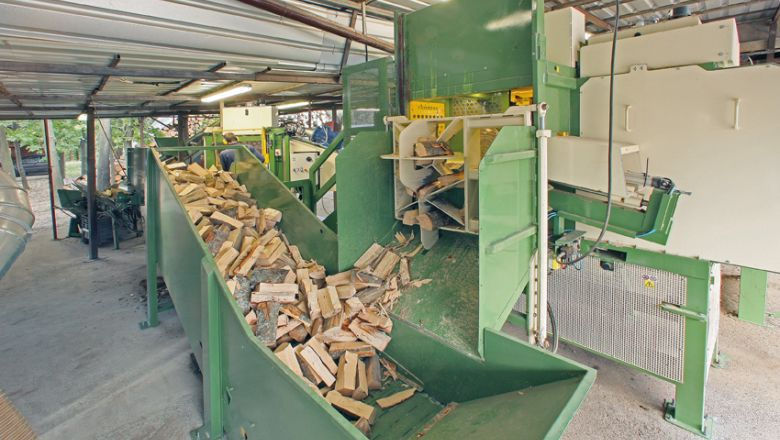

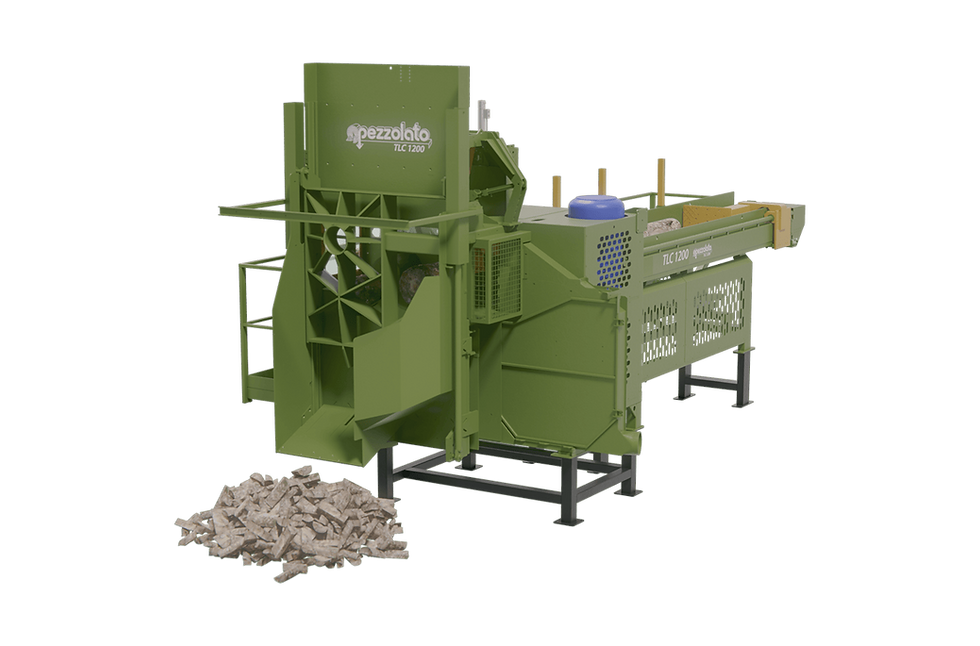

TLC1200
The Pezzolato TLC1200 is a high-performance, single-operator firewood processor designed for efficient cutting and splitting of large-diameter logs. Featuring a circular saw cutting system with a disc of around 1200 mm, it can process logs up to approximately 500 mm in diameter while delivering fast, automated cycles. Integrated splitting technology and a continuous feed system allow for smooth production flow, making the TLC1200 ideal for commercial firewood operations requiring high output and consistent sizing.
KEY Specifications
-
Disc diameter with teeth: 47.2 in
-
Max log diameter: 18.1 in
-
Maximum log passage: 133.9 in
-
Splitting force: 25/32 tons
-
Maximum splitting length: 23.6 in
-
Electric motor power: 40.23/49.61 Hp
-
Minimum tractor power: 70 Hp
Technical Drawing
