TLA Industrial Saws
TLA in Italian stands for “Taglia Legna Automatica” which translates to “automatic wood cutter.” The TLA is unlike any other saw offered in the United States because of its production capabilities, safety features, and accuracy of cut.
The number that follows TLA (13, 15, 18, or 22) refers to the diameter of the saw blade for that model. All of these units are designed to be high production saws, with fast cycle times and offer bundle cut capabilities.
Comparative Technical Specifications
TLA13
- Disc Diameter: 51.2 in
- Max log diameter: 20.1 in
- Feeding tube width: 31.5 in
- Max inlet passage: 31.5 x 21.7 in
- Standard log passage: 11.2–22.3 ft.
- Electric motor power: 60.3–73.8 Hp
TLA15
- Disc Diameter: 59.1 in
- Max log diameter: 23.2 in
- Feeding tube width: 31.5 in
- Max inlet passage: 31.5 x 25.2 in
- Standard log passage: 11.2–22.3 ft.
- Electric motor power: 73.7–100.6 Hp
TLA18
- Disc Diameter: 70.9 in
- Max log diameter: 28 in
- Feeding tube width: 39.4 in
- Max inlet passage: 39.4 x 29.5 in
- Standard log passage: 11.2–22.3 ft.
- Electric motor power: 100.6–120.7 Hp
TLA22
- Disc Diameter: 86.6 in
- Max log diameter: 33.5 in
- Feeding tube width: 39.4 in
- Max inlet passage: 39.4 x 34.6 in
- Standard log passage: 11.2–22.3 ft
- Electric motor power: 147.5–177 Hp

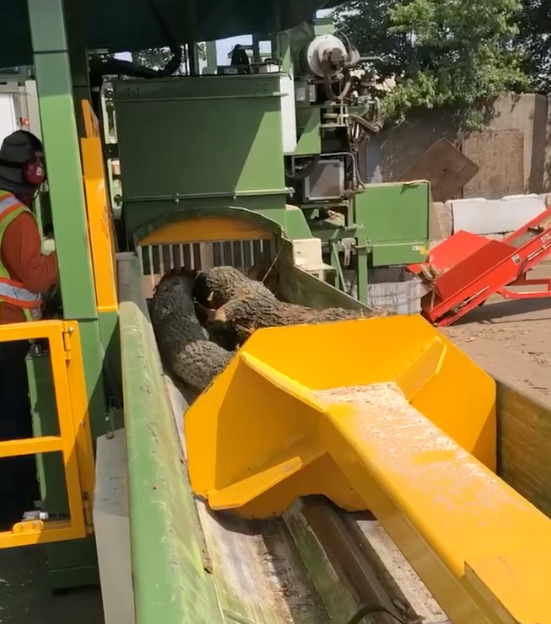

TLA13
The Pezzolato TLA13 is a compact, high efficiency industrial saw built for reliable, consistent cutting. Designed for professional use, it delivers fast, accurate cuts to produce uniform firewood lengths quickly and safely. Its durable construction, simple operation, and low maintenance make it an excellent choice for businesses that want to maximize cutting productivity in a small footprint, all backed by the proven quality of Pezzolato.
Key Specifications
- Disc Diameter: 51.2 in
- Max log diameter: 20.1 in
- Feeding tube width: 31.5 in
- Max inlet passage: 31.5 x 21.7 in
- Standard log passage: 11.2–22.3 ft.
- Electric motor power: 60.3–73.8 Hp
Technical Drawing
TLA15
Technical Drawing
The Pezzolato TLA15 is a versatile industrial saw built for growing operations that need dependable cutting performance. It delivers fast, precise cuts in a compact footprint, making it ideal for producing consistent, uniform firewood lengths while keeping operation simple and durable.
Key Specifications
-
Disc Diameter: 59.1 in
-
Max log diameter: 23.2 in
-
Feeding tube width: 31.5 in
-
Max inlet passage: 31.5 x 25.2 in
-
Standard log passage: 11.2–22.3 ft.
-
Electric motor power: 73.7–100.6 Hp
TLA18
Designed for higher output, the Pezzolato TLA18 offers increased power and capacity for professional firewood production. Its robust construction, smooth workflow, and precision cutting make it a reliable saw for businesses that want to boost throughput without sacrificing accuracy.
Key Specifications
-
Disc Diameter: 70.9 in
-
Max log diameter: 28 in
-
Feeding tube width: 39.4 in
-
Max inlet passage: 39.4 x 29.5 in
-
Standard log passage: 11.2–22.3 ft.
-
Electric motor power: 100.6–120.7 Hp
Technical Drawing
TLA22
Technical Drawing
The Pezzolato TLA22 is a heavy duty industrial saw engineered for maximum cutting productivity. Built to handle larger diameters and demanding workloads, it combines high feed capacity with fast cycle times, making it an excellent choice for high volume operations that require strength, speed, and long term reliability from Pezzolato.
Key Specifications
-
Disc Diameter: 86.6 in
-
Max log diameter: 33.5 in
-
Feeding tube width: 39.4 in
-
Max inlet passage: 39.4 x 34.6 in
-
Standard log passage: 11.2–22.3 ft
-
Electric motor power: 147.5–177 Hp
