Vertical Splitters

TB stands for “Taglia Blocchi,” which is Italian for “Split Blocks.” The number that follows TB (600, 900, 1200) refers to the width of the splitting wedge opening, equating to the maximum diameter log that this splitter can process. TB splitters do not split one log at a time, but instead vertically splits however many logs it is presented.

TB600 Vertical Splitter

The Pezzolato TB600 Vertical Splitter is a heavy-duty automatic vertical log splitting station designed for professional firewood production. It processes round timber up to 600 mm (≈24″) in diameter, splitting logs vertically with about 30 tonnes of force to produce consistently sized firewood or kindling. The system features automatic feeding and electronic log measurement, accepts logs as short as ~50 mm for fire-starter production, and can cycle rapidly for efficient output in commercial wood processing setups.

  • TMTB600 2.jpg
  • Splitting unit TB 600.jpg
  • TMTB600.jpg
KEY Specifications

  • Max log diameter: 600 mm

  • Splitting force: 30 ton

  • Cut logs length: max500 mm

  • Electric motor power: 18.5 kW

  • Kindling minimum size*: 20x20 mm

  • Cycle time: 10

Pezzolato TM-TB 600 - Stabilimento.mp4

Industrial Schematic & Drawing

TB900 Vertical Splitter

The Pezzolato TB 900 Vertical Splitter is a heavy-duty automatic industrial vertical log splitting unit built for large-diameter firewood production. It processes round timber from about 300 mm up to 900 mm (≈12″–35″) in diameter and heights up to ~500 mm, using a robust automatic feeding system and a hydraulically driven splitting wedge with around 40 tonnes of force to produce uniform firewood or kindling with minimal waste. Designed for high-performance commercial operations, it can be integrated into larger firewood processing lines and requires minimal operator intervention.

  • TB-900-copia.jpg
  • vlcsnap-2019-03-25-14h46m06s125-1024x576-1.jpg
  • DJI_0239.jpg
  • Splitting unit TB 900.jpg
KEY Specifications

  • Max log diameter: 900 mm

  • Splitting force: 40 ton

  • Cut logs length: max500 mm

  • Electric motor power: 22 kW

  • Kindling minimum size*: 20x20 mm

  • Cycle time: 8 up to 12

My Movie 18.mp4

Industrial Schematic & Drawing

TB1200 Vertical Splitter

The TB 1200 vertical splitter by Pezzolato is an automatic industrial splitting unit engineered for the processing of large-diameter round timber up to 1,200 mm. Designed for integration into high-capacity firewood production lines, it features automatic log feeding, electronic measurement, and a high-power hydraulic splitting system to ensure consistent output, reliability, and continuous operation in professional environments.

  • 20140703_155752.jpg
  • 1627408040-0b0bef8487b8342cadd859b5994516fb6f491ccd6a364c8a6aa201651241ecf6-d.avif
KEY Specifications

  • Max log diameter: 1200 mm

  • Splitting force: 50 ton

  • Cut logs length: max500 mm

  • Electric motor power: 30 kW

  • Kindling minimum size*: 20x20 mm

  • Cycle time: 8

My Movie 22.mp4

Horizontal Splitters

Horizontal splitters are the cornerstone of high-volume industrial firewood processing, engineered to handle log diameters that exceed the capacity of traditional units. Preferred for their seamless integration into automated production lines, these machines prioritize high-efficiency throughput and ergonomic log management for serious commercial operations.

SP40 Horizontal Splitters

The Pezzolato SP40 Horizontal Splitter is engineered for high-volume firewood operations, offering up to 40 tons of splitting force to handle tough, oversized logs with ease. Its horizontal design allows for fast loading and continuous workflow, while the heavy-duty hydraulic system ensures smooth, consistent cycles. Built for integration into conveyors and full processing lines, the SP40 delivers dependable performance for demanding commercial use.

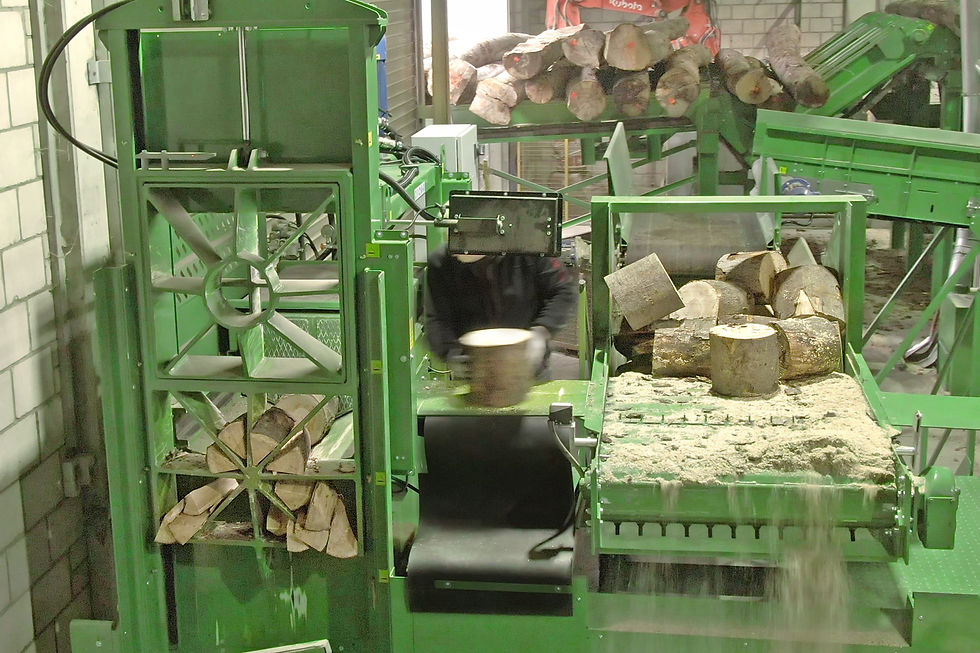

  • Splitting unit SP.jpg
IMG_0115.mp4
Technical Specifications

  • Splitting force: 40ton

  • Electric engine power: 18.5 kW

  • Completed cycle run time: 5 sec

KV700 Horizontal Splitters

The Pezzolato KV700 Horizontal Splitter is built for heavy-duty, high-throughput firewood production, delivering up to 70 tons of splitting force for large-diameter and difficult timber. Designed for continuous operation, it features a robust horizontal layout, powerful hydraulics, and smooth, controlled splitting cycles. Ideal for integration into professional processing lines, the KV700 offers exceptional strength, reliability, and productivity for commercial firewood operations.

  • Spaccalegna-KV-1024x576-1.jpg
  • Pezzolato-KX-650-1-768x460.jpg
  • IMG_6187.jpg
Technical Specifications

  • Min log diameter: 100 mm

  • Splitting force: 16 + 16 ton

  • Max log length: 500 mm

  • Electric engine power: 30 kW

  • Firestarters minimum size*: 20x20 mm

  • Work cycle per minute: 6

Pezzolato TLK650-KV700 - Legna e accendifuoco.mp4

Triple Splitter

The Pezzolato triple splitter is a high-productivity horizontal splitting unit designed to divide logs into three pieces in a single pass. Featuring three independent splitting wedges or a 3-way head, it dramatically increases throughput compared with single- or double-wedge splitters. Built for integration into professional firewood processing lines, the triple splitter delivers consistent piece sizes, smooth hydraulic operation, and reliable performance for commercial firewood producers.

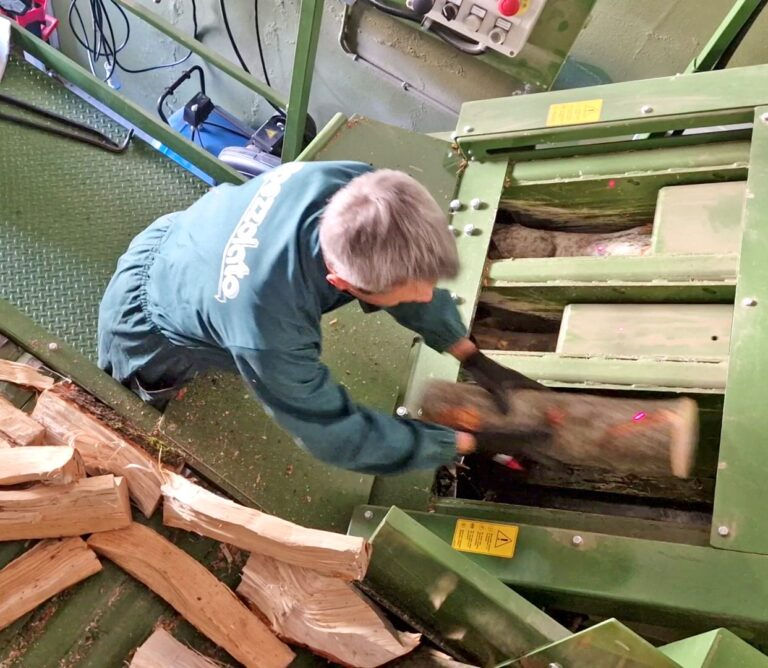

  • Spaccalegna-a-tre-vie-02-Copia-768x668.jpg
  • Splitting unit ST.jpg
Technical Specifications
  • Splitting Force: 3 x 11 Tons
  • Electric engine power: 30 kW
